Wireless FM Microphone (CB14944E)

Details
Written by: Newton C. Braga

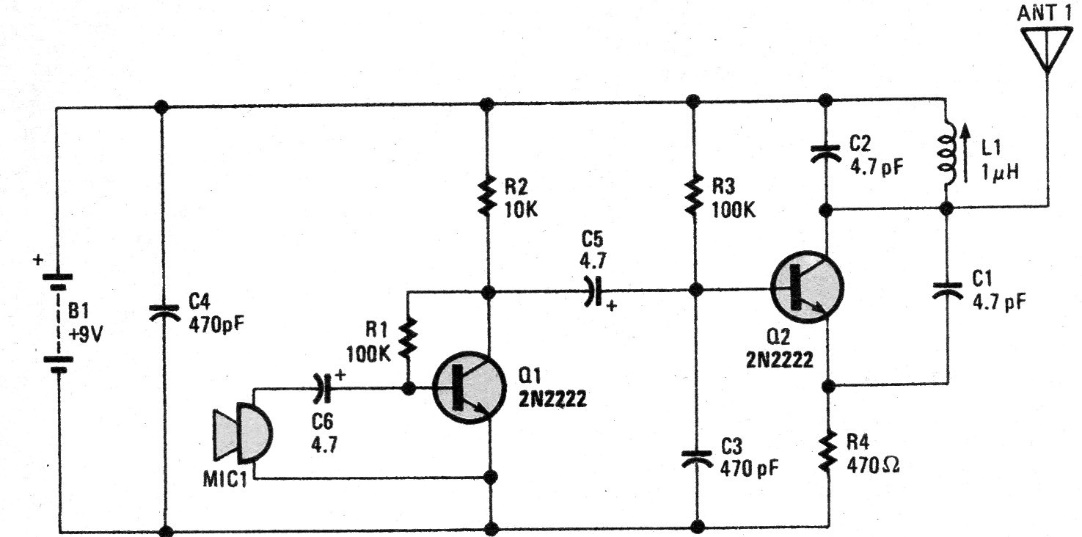

We found this circuit in a 1979 Poptronics. The coil is formed by 5 turns of wire 28 in an adjustable 0.5 cm ferrite core and the antenna is 12 to 30 cm long. The microphone must be piezoelectric, and the capacitors are ceramic.






| Clique na imagem para ampliar |
