Power Supply Monitor (CB14972E)

Details
Written by: Newton C. Braga

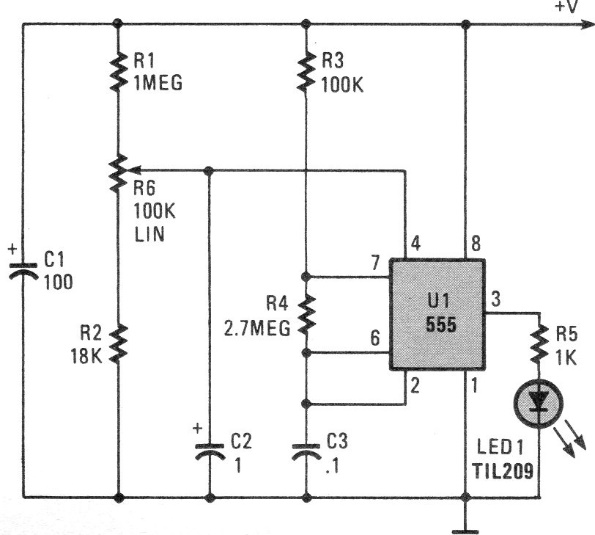

This circuit trips when the voltage set in the pot is exceeded. The tone depends on C3 and resistors R3 and R4. The circuit works with voltages from 5 to 15 V. We found this circuit in a 1990 documentation.
