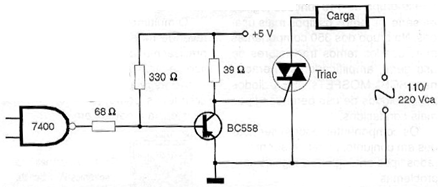

The purpose of this circuit is to interface a TTL system with a TRIAC controlling a power load connected directly to the power grid. Note the need for a common negative pole for the high and low voltage circuit.
TTL x Triac Shield (CB15591E)
- Details
- Written by: Newton C. Braga
