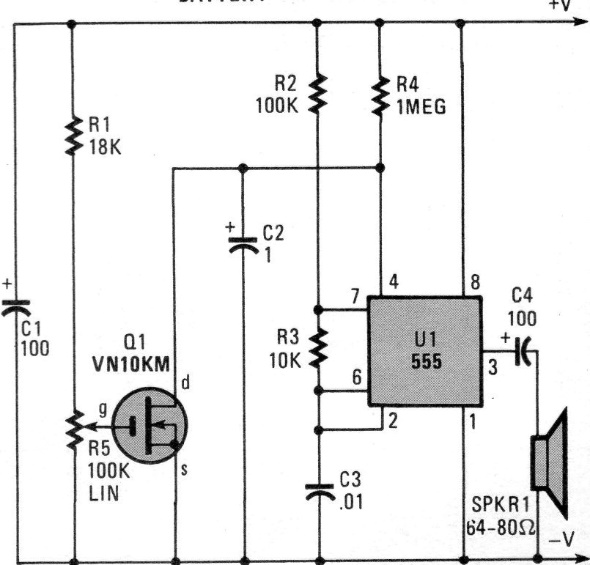

This circuit triggers oscillator 555 when the supply voltage drops below the value set in the pot. The FET admits equivalent and the circuit works with voltages in the range of 5 to 12 V. We found this configuration in a documentation from the 90's.
Battery Voltage Monitor (CB14971E)
- Details
- Written by: Newton C. Braga
