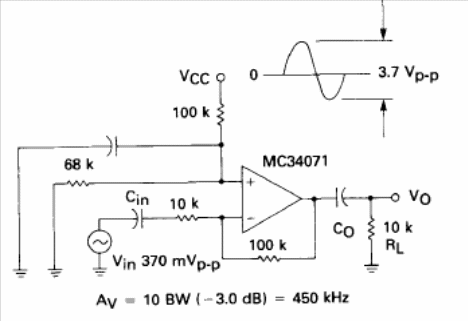

This circuit can use any operational of the MC34071 family. It was suggested by Motorola's Linear Databook in 1990. The circuit requires a symmetrical power source and has voltage.gain 10.
AC Inverter Amplifier MC34071 (CB14476E)
- Details
- Written by: Newton C. Braga
