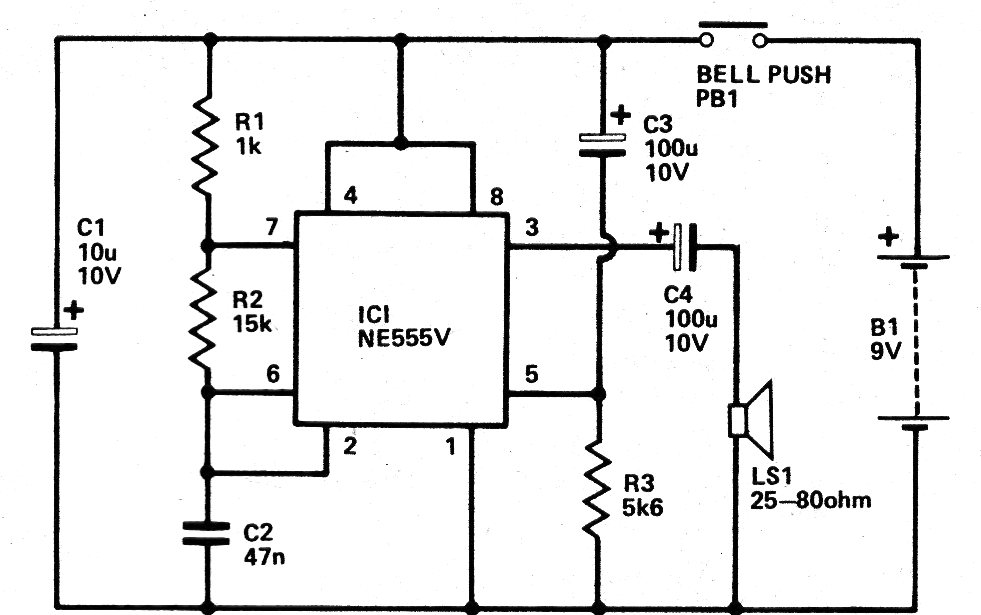

This circuit was suggested by a 1979 documentation, and a ceramic transducer can be used in place of the high impedance speaker. Capacitor C2 can be changed to modify the sound emitted. The supply can be done with voltages between 5 and 12 V.
