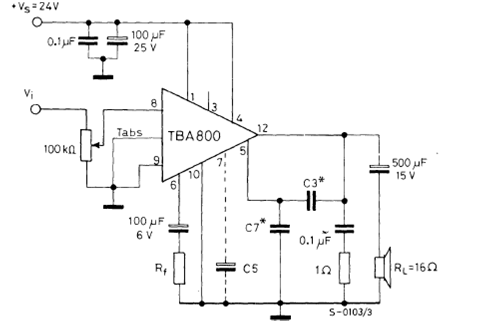

This circuit has a load connected to the ground providing 5 W of power at 16 ohms. The circuit is from the SGS linear integrated circuits manual. Capacitors C3 and C7 typically have values between 10 and 100 nF.
5 W TBA800 Amplifier 2 (CB15210E)
- Details
- Written by: Newton C. Braga
