Dual 5V Regulator LM2935 (CB15325E)

Details
Written by: Newton C. Braga

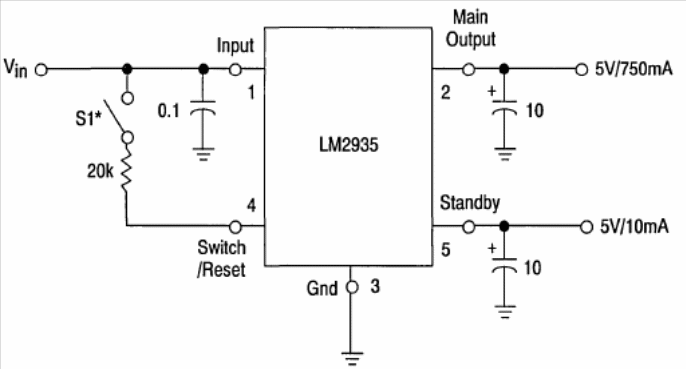

The circuit shown uses an unusual regulator currently, which is the LM2935, which must be mounted on a heat radiator. The circuit is from Motorola's Linear Interface ICs.
