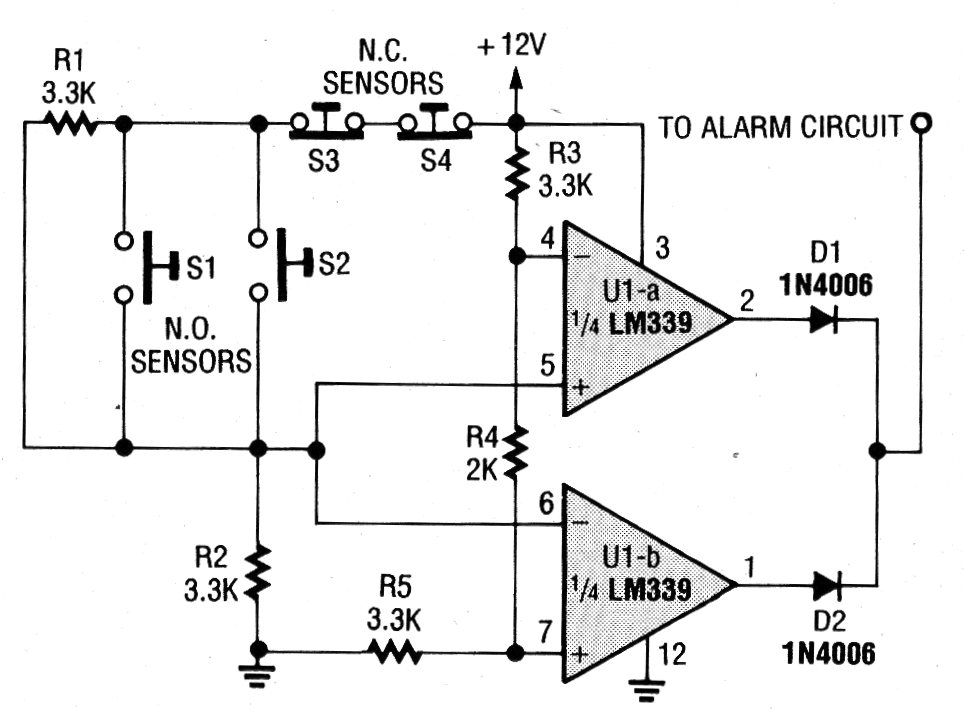

The circuit shown consists of a NO and NC sensor system for alarms. The output must be connected to a power step for activating relays, for example. The supply can be made with a voltage of 12 V or according to the relays. We found this configuration in 90s documentation.
