Signal Follower (CB14741E)

Details
Written by: Newton C. Braga

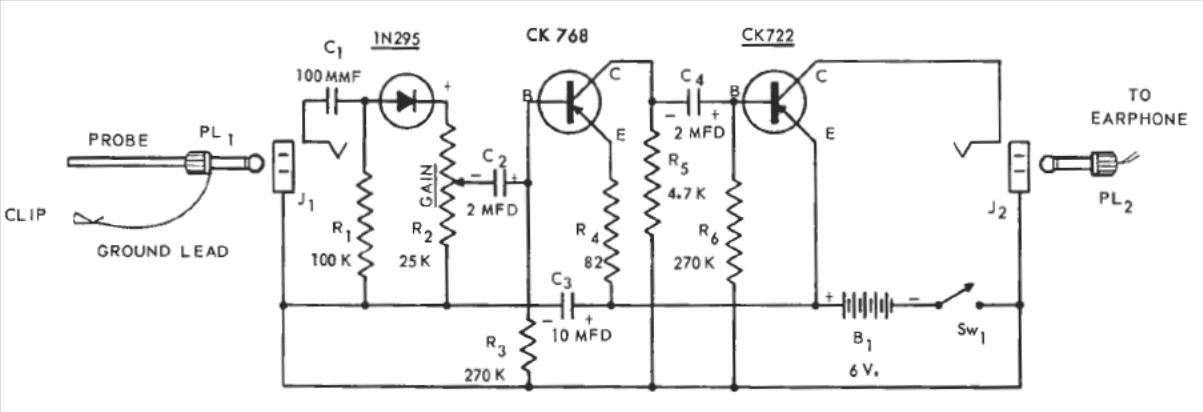

We found this circuit in a 1957 Raytheon transistor publication. The circuit can be assembled with more modern transistors with minor changes. The handset must be high impedance magnetic.
