SCR Dimmer (CB14822E)

Details
Written by: Newton C. Braga

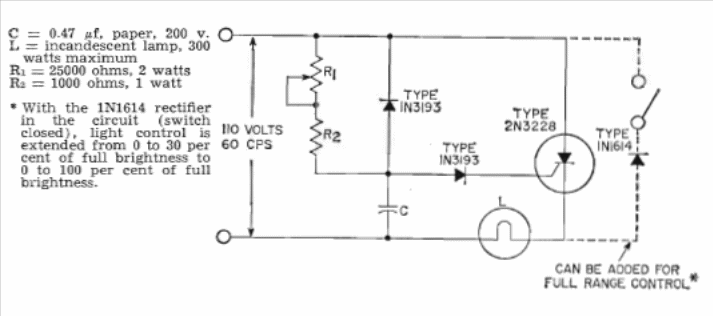

This traditional dimmer configuration for incandescent lamps and heating elements was found in an RCA transistor manual. SCR can be a more modern equivalent like TIC106, depending on the power grid.
