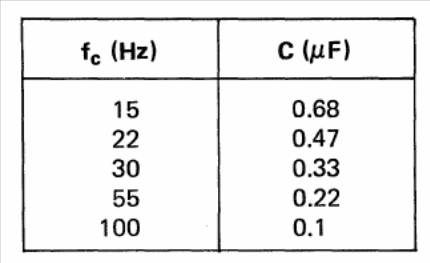

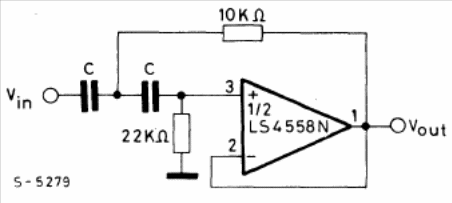

The integrated circuit used in this filter is like to a double 741 and must be powered by a symmetrical source. In the table the values of the components for the different cutoff frequencies. The circuit must be powered by a symmetrical source of 6 to 12 V. The circuit is from the 1982 SGS linear integrated circuits manual.
