4 W AM Transmitter at 500 kHz (CB14766E)

Details
Written by: Newton C. Braga

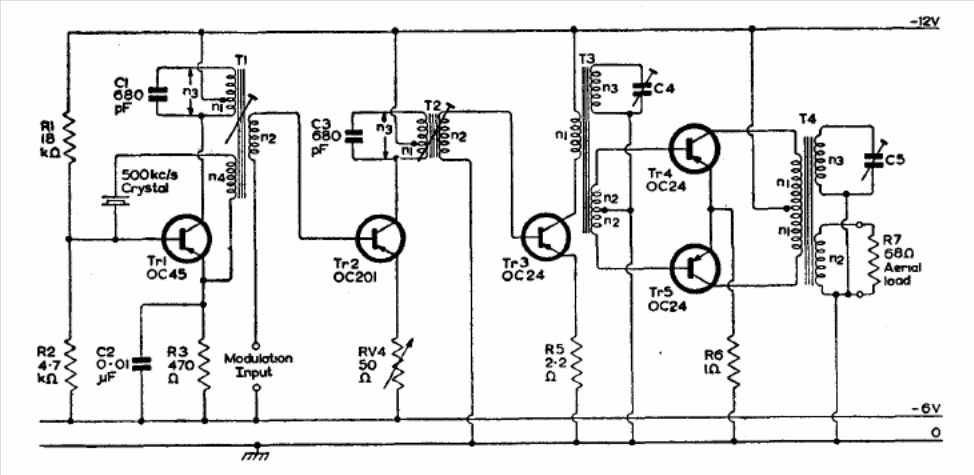

The coils of this circuit will determine the transmission frequency of this device. The circuit is from the 1960 Mullard transistor reference manual and makes use of germanium transistors.
