Signal Generator (CB14449E)

Details
Written by: Newton C. Braga

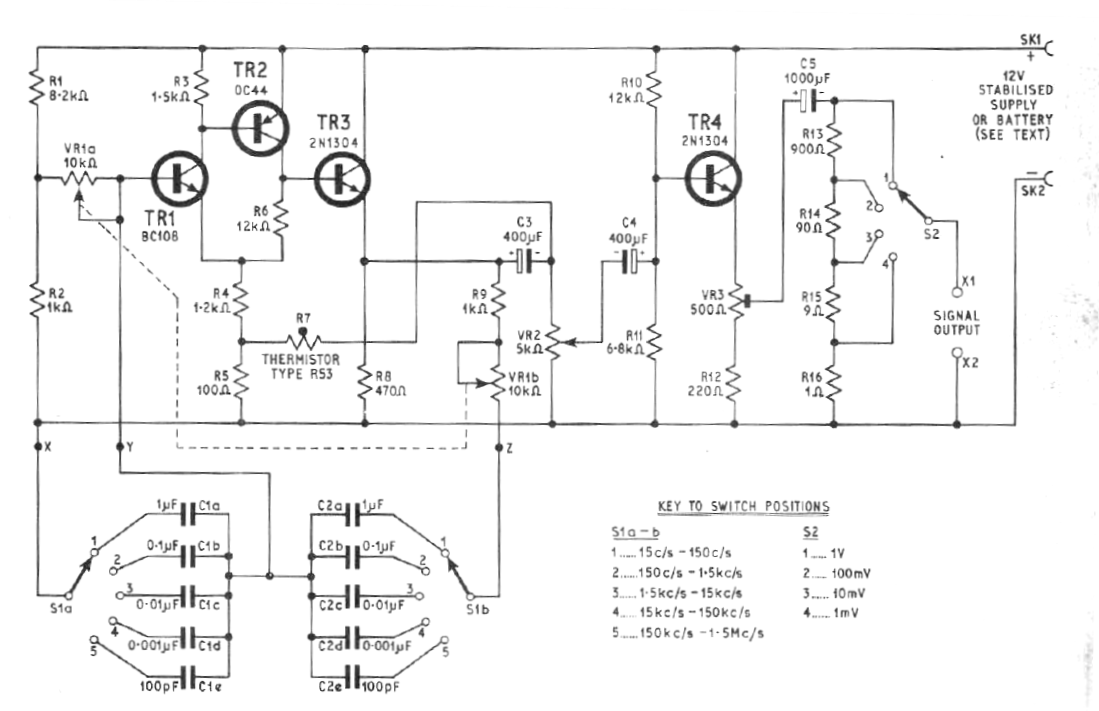

We found this circuit in a 1965 magazine. The circuit can be assembled with current equivalent transistors and the precision in generating the frequencies depends on the tolerance of the capacitors.




| Clique na imagem para ampliar |
