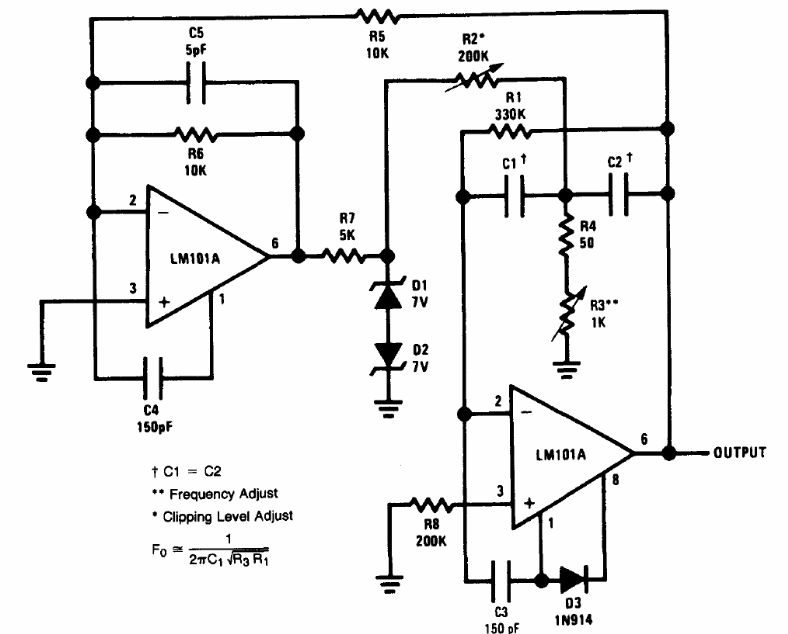

Low Distortion Sinusoidal Oscillator (CB14426E)

Details
Written by: Newton C. Braga



We found this circuit in a 1994 National Semiconductor technical documentation. The circuit can be adapted to operate with more modern equivalent operational amplifiers.
