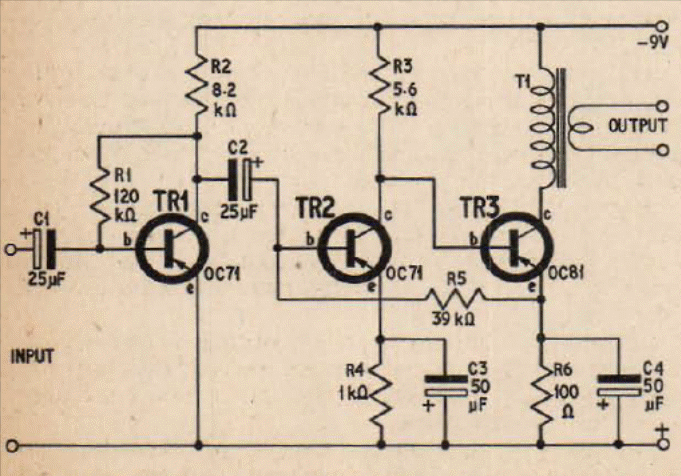

This simple low-power circuit uses, in the original version of 1965, germanium transistors. The transformer is an output type for transistors. The components can have their values approximate to the current standard ones.
