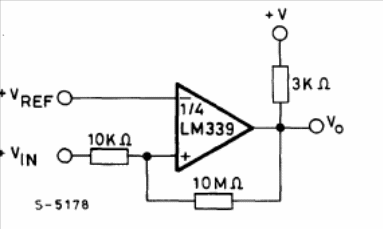

This is the basic configuration of many LM339 manuals, as a comparator with hysteresis. The font does not have to be symmetrical. The circuit is from the 1982 SGS Linear Integrated Circuits Manual.
Comparator with Hysteresis LM339 (CB15187E)
- Details
- Written by: Newton C. Braga
