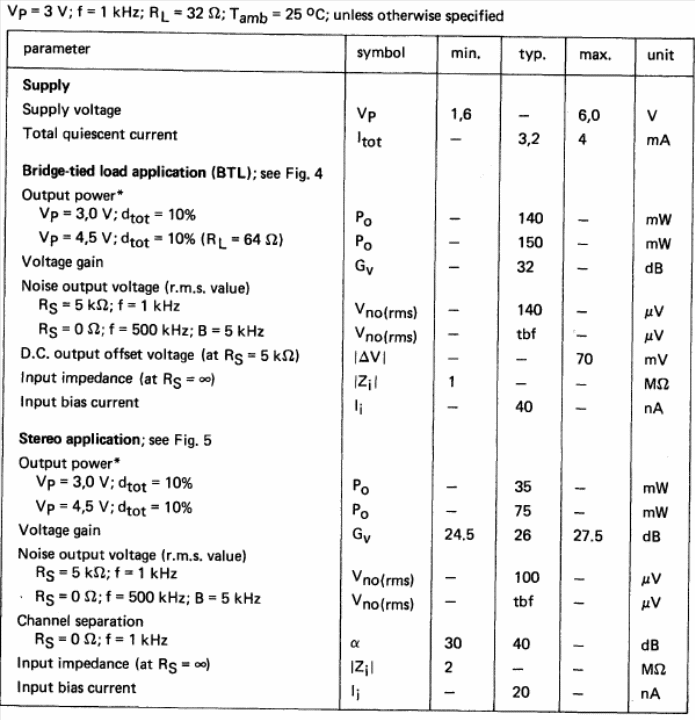

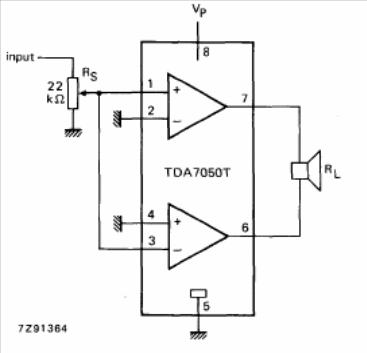

This low power amplifier circuit for speaker or phone is from the Philips Databook of 1990. The circuit has the power according to the power supply and the characteristics are given in the table.
| Clique na imagem para ampliar |
150 mW BTL Amplifier TDA7052 (CB15399E)
- Details
- Written by: Newton C. Braga
