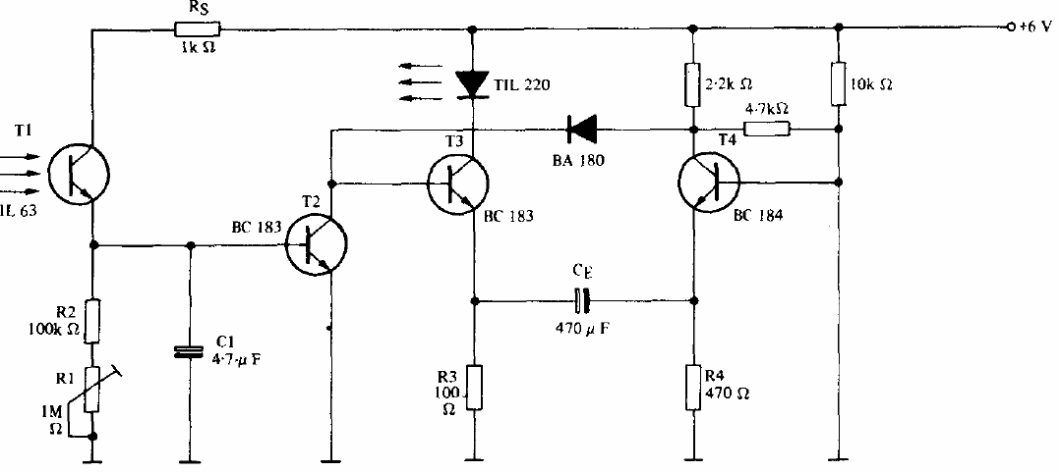

This circuit causes an LED to blink when night falls. Sensitivity is set at R1 and the blinking frequency is determined by the 470 uF capacitor. The circuit was found in a Texas Instruments optoelectronics manual and the transistors may be the BC548.
