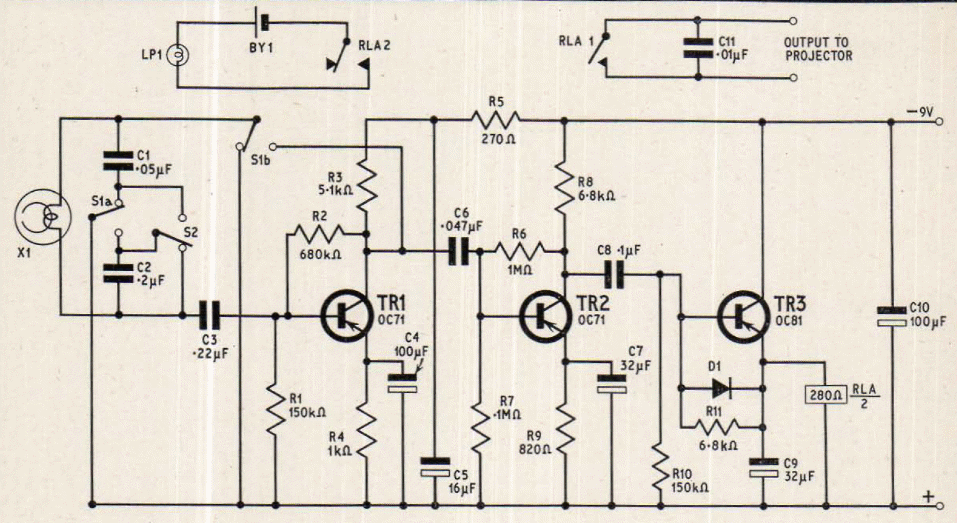

This circuit of an old 1968 magazine aims to synchronize a slide projector with a recording, but it can be used for other purposes, such as using an “abandoned” tape player as a programmable control through recorded audio signals. at the tape. Transistors can be exchanged for modern equivalents with small changes in polarization.
