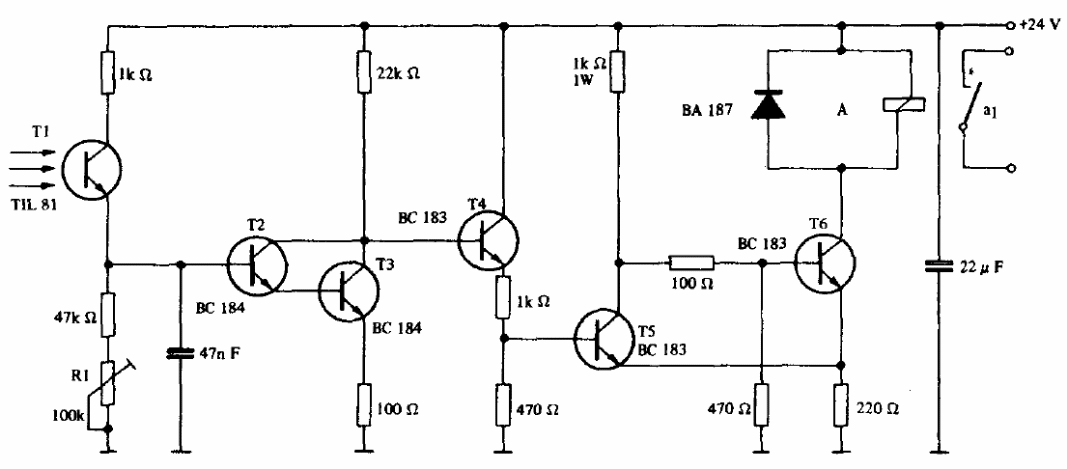

This sensitive circuit was found in a Texas Instruments optoelectronics manual. The transistors can be BC548 and the power supply is according to the relay used. The diode can be 1N4148. R1 is the sensitivity setting.
