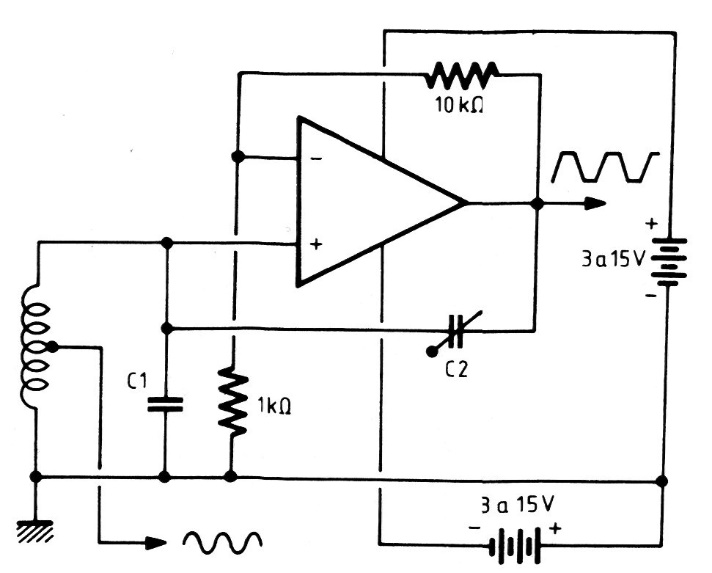

The maximum frequency of this circuit depends on the operational, reaching a few hundred kilohertz. The circuit is from French documentation from 1982 and applies to almost any type of operation. For this version the power supply must be symmetrical. L and C determine the frequency.
