5 V regulator MC34063 (CB14556E)

Details
Written by: Newton C. Braga

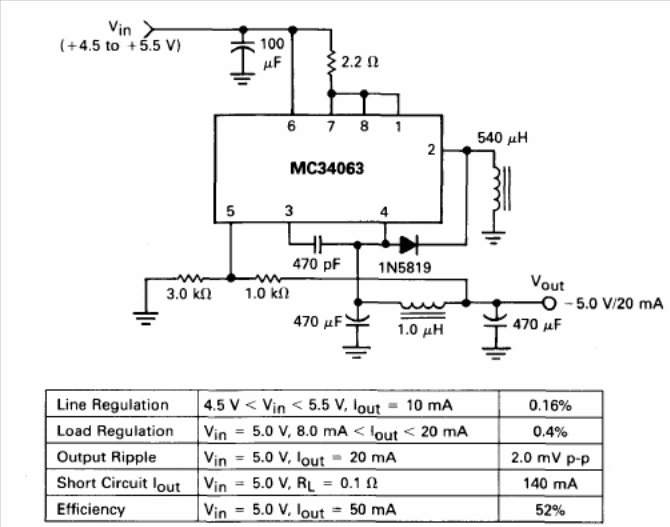

The integrated circuit used is no longer common today. The circuit is from Motorola's 1990 Linear Databook. The characteristics are given in the table.




| Clique na imagem para ampliar |
