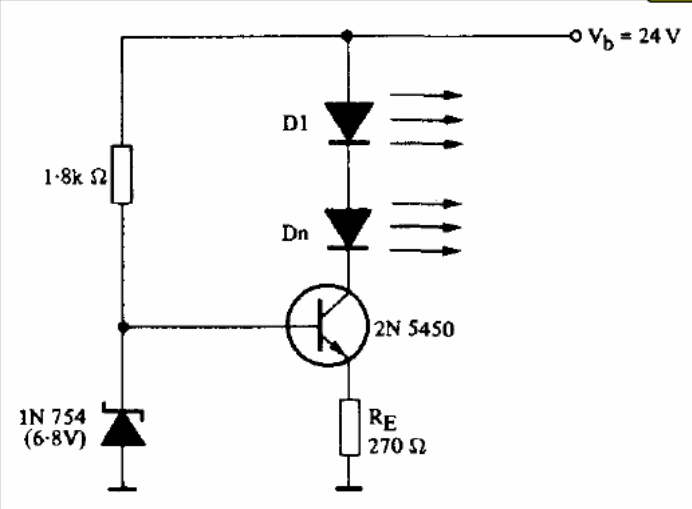

The resistor Re determines the current in the LED and can be changed. The circuit is from a 1978 optoelectronics manual by Texas Instruments. General purpose bipolar transistors such as BC548 can be used.
| Clique na imagem para ampliar |
LED Bipolar Constant Current Source (CB14630E)
- Details
- Written by: Newton C. Braga
