PWM 4093 (CB14960E)

Details
Written by: Newton C. Braga

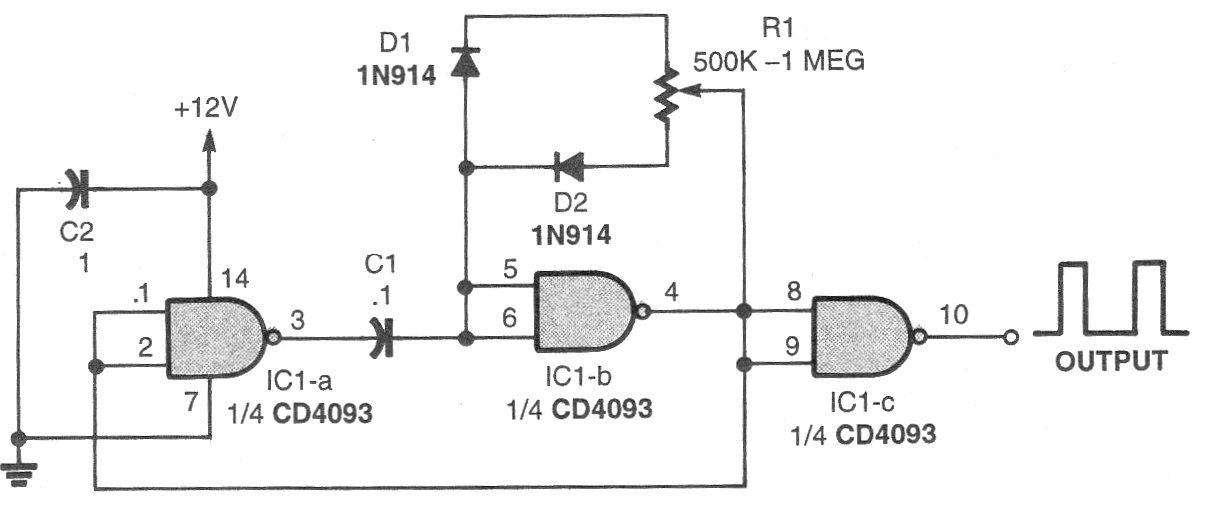

We found this circuit in an American publication from the 90s. It generates pulses that can be modulated in amplitude. The supply can be done by voltages from 5 to 12 V and the frequency depends on C1 and C2.
