9 V Battery Tester and Cell (CB15087E)

Details
Written by: Newton C. Braga

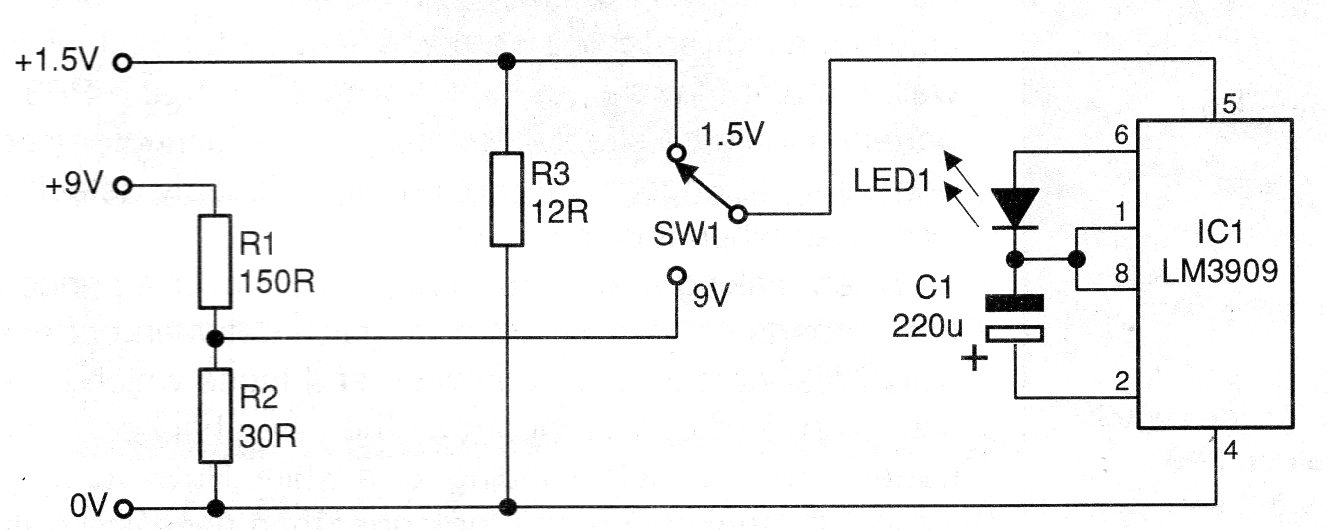

If the battery is good, the LED flashes. This simple tester uses an LM3909 integrated circuit. We found this configuration in an old documentation.




| Clique na imagem para ampliar |
