BTL TDA2002 15W Amplifier (CB15825E)

Details
Written by: Newton C. Braga

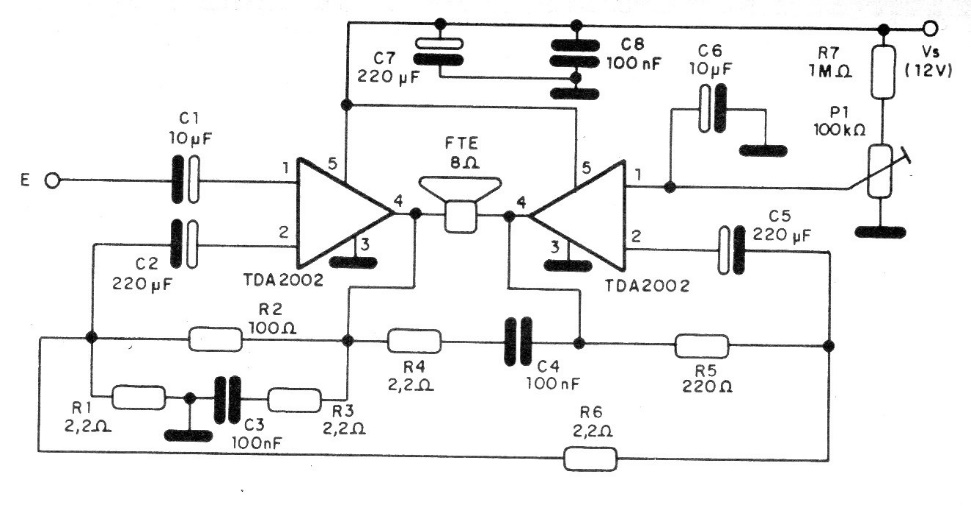

This amplifier provides up to 15 W of output when powered by a simple 12 V source. The integrated circuit must have an excellent heat sink.




| Clique na imagem para ampliar |
