Power Line Frequency Monitor (CB16647E)

Details
Written by: Newton C. Braga

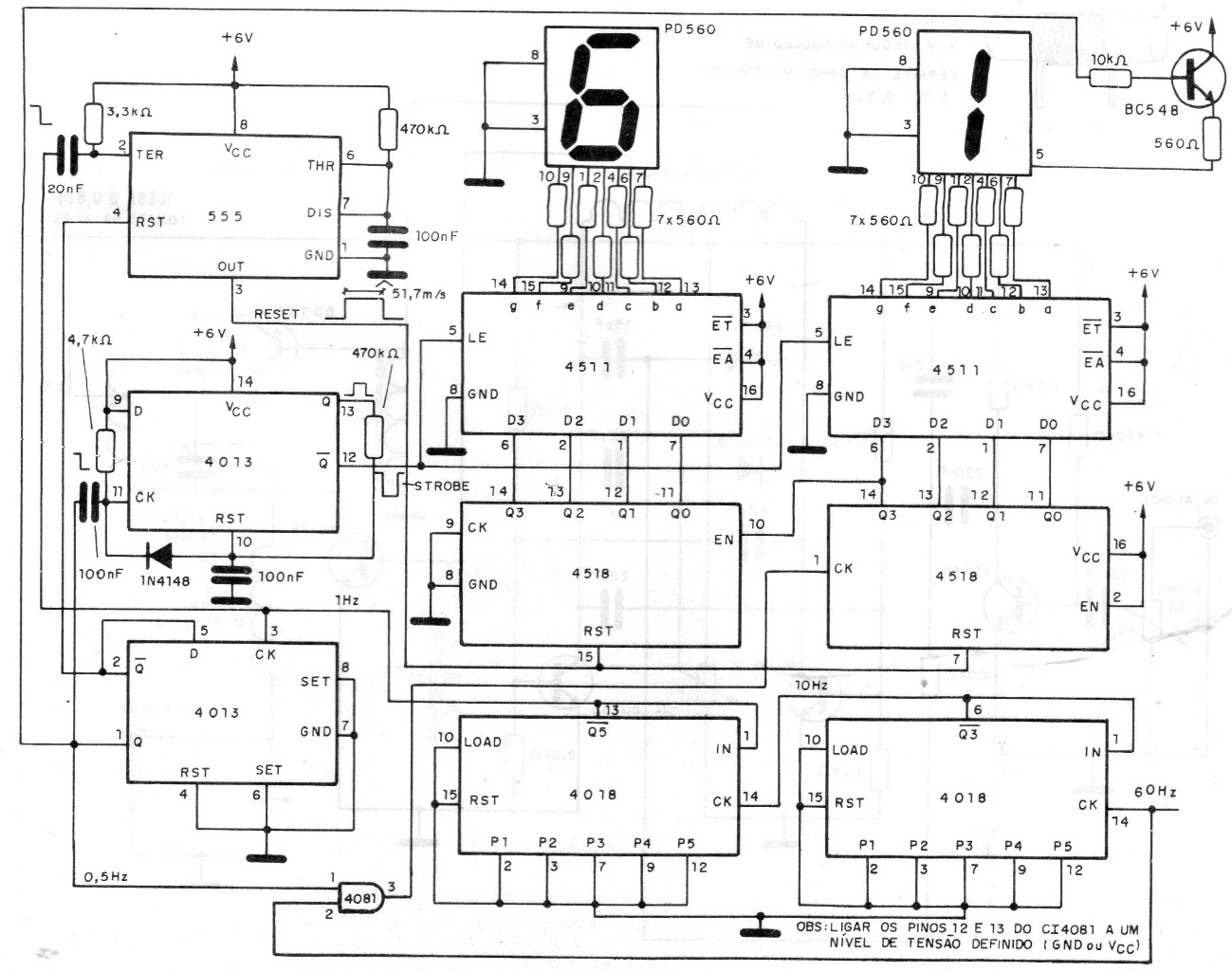

This circuit is from a 1992 publication and is based on CMOS technology. The circuit is powered by a 6 V source and the displays are of common cathode.
