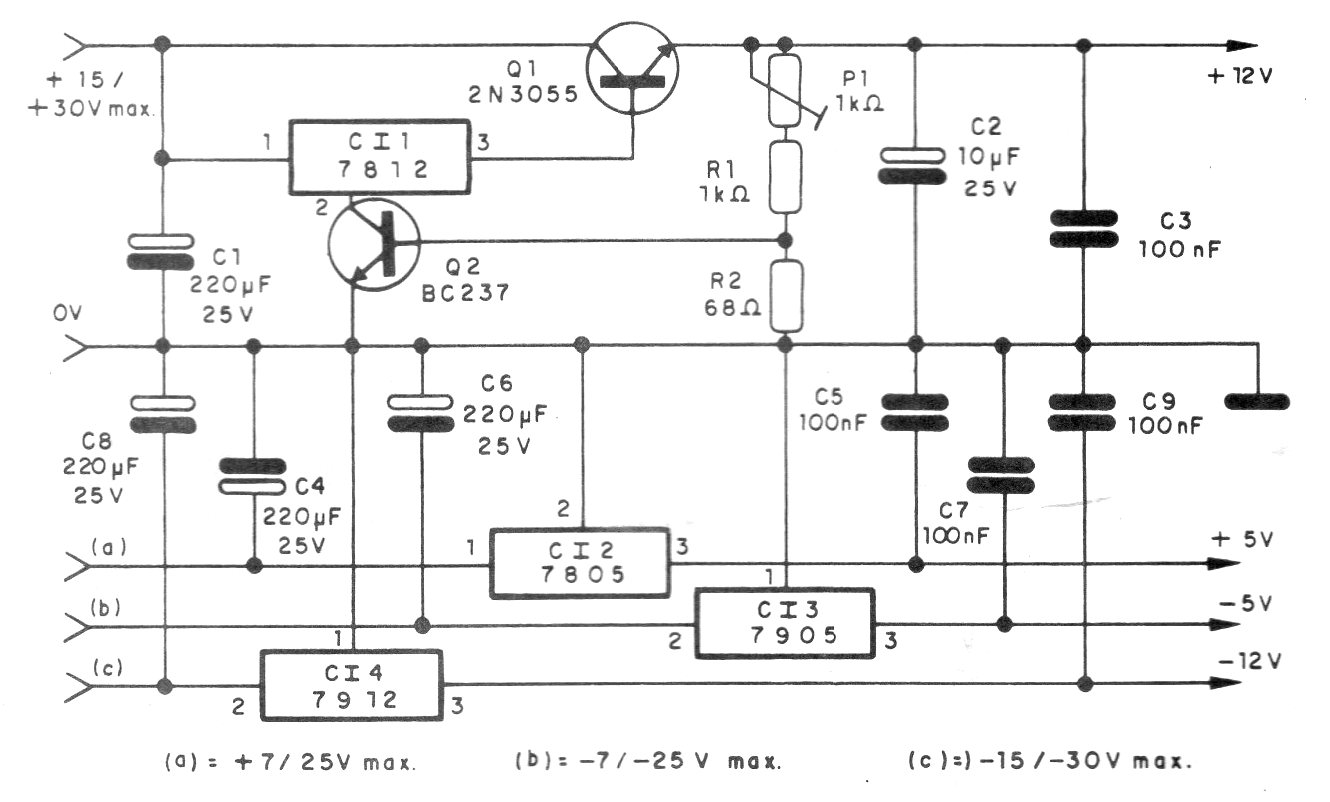

From different input voltages V, it is possible to reduce the voltage to several fixed values using this circuit. The maximum current is 1 A and both the integrated circuits, and the power transistor must be mounted on heat sinks.
| Clique na imagem para ampliar |
