Night Switch (CB16739E)

Details
Written by: Newton C. Braga

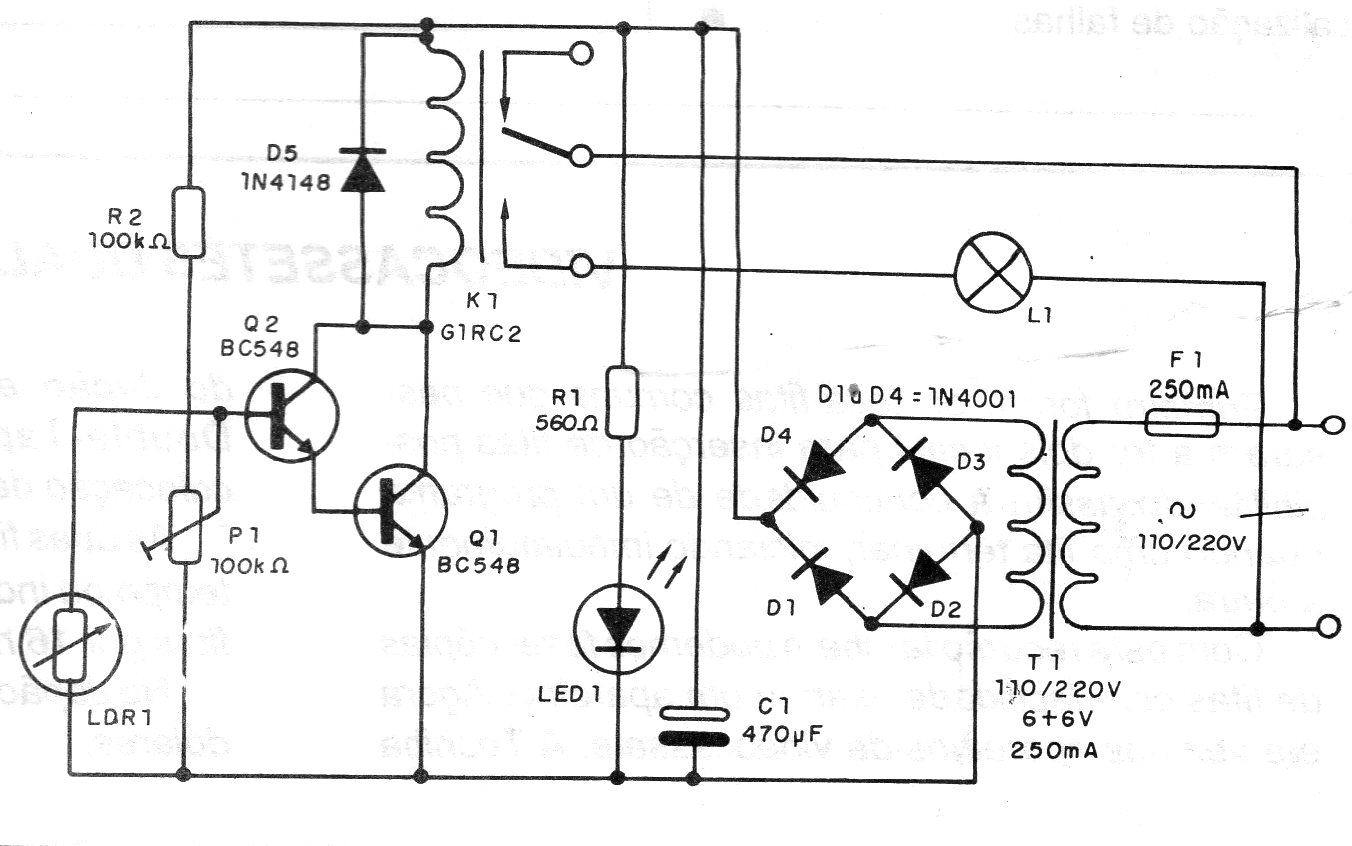

This circuit was found in a 1992 publication. What it does is to light an external lamp when it gets dark. The trigger point adjustment is made in a potentiometer or trimpot and the sensor is a common LDR.
