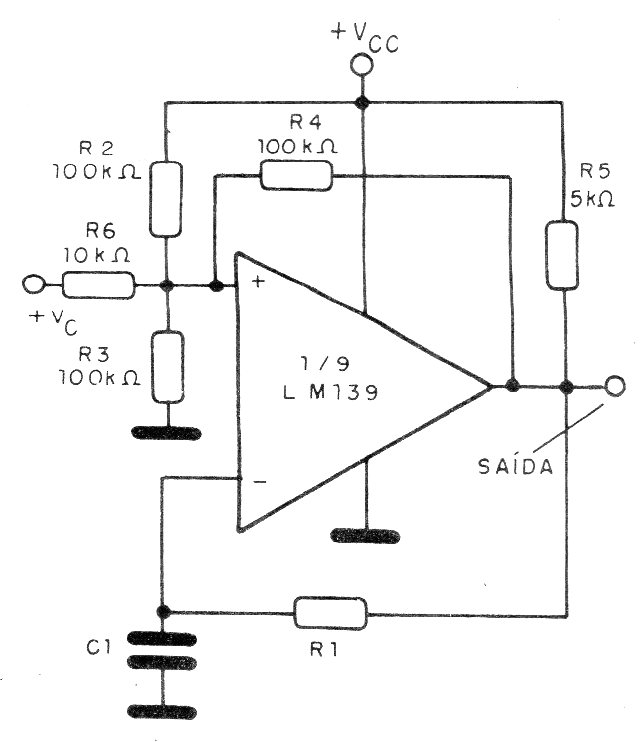

This 1992 circuit uses a common LM139 comparator today, but it can be built with equivalent amplifiers from the same series. The voltage from 3 to 12 V depends on the operational and the gain is given by R4. R1 and C1 determine the operating.
Pulse Width Modulator (CB16667E)
- Details
- Written by: Newton C. Braga
