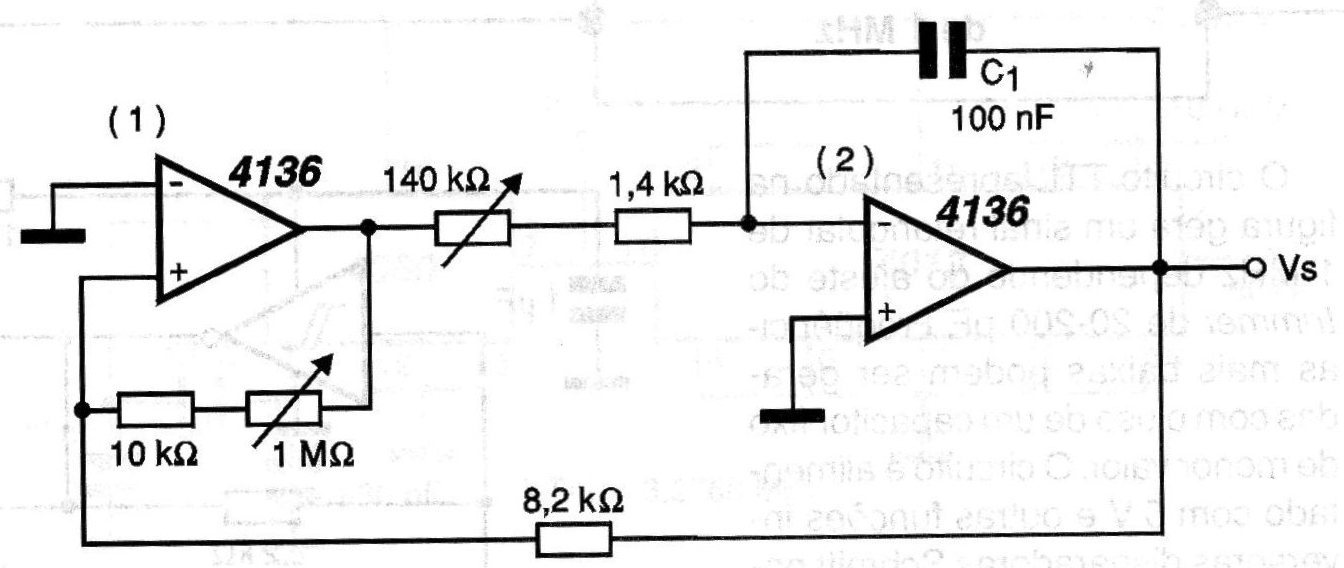

The integrated circuit 4136 consists of operational amplifiers of type 741 in the same enclosure and can therefore be replaced by the equivalent in separate enclosures. Your power supply must be symmetrical, and the potentiometers adjust the frequency and linearity of the signal. Capacitor C determines the frequency range generated by the circuit which, in this case, will have a centralized value around 1 kHz.
