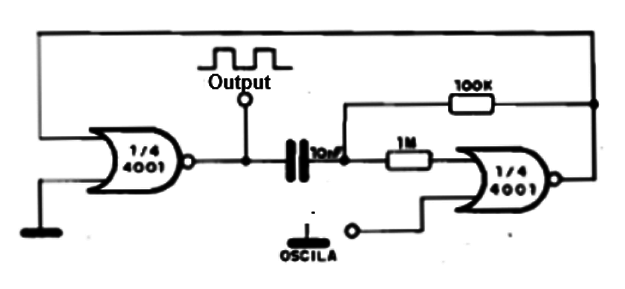

This circuit can gerenate square signals and be comanded by na external control. When the input goes to the low level the oscillator run producing a square signal. The maximum oscillation frequency is about 5 MHz. The circuit can be powered from 3 to 12 V supplies.
