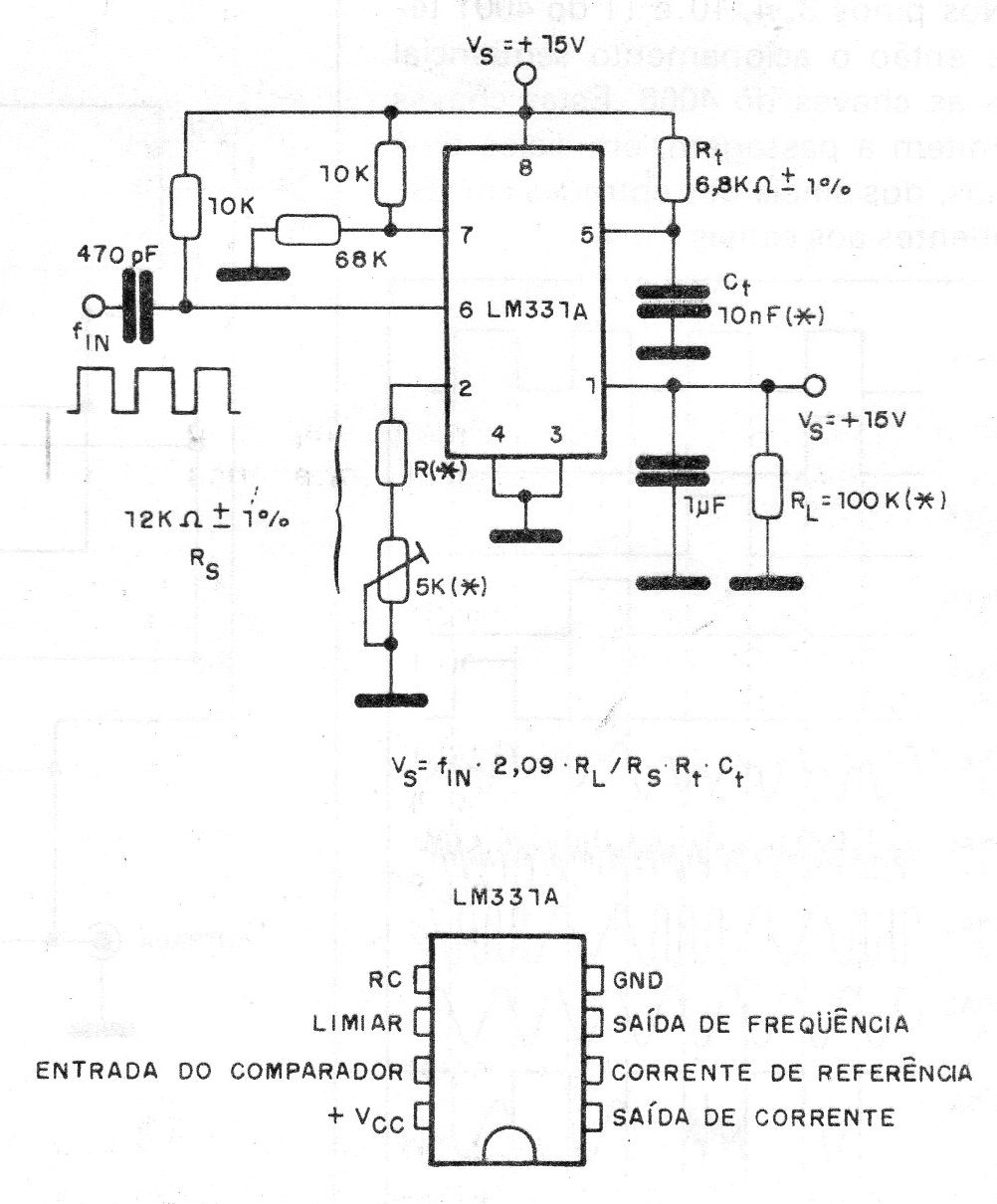

This National Semiconductor (Agora Texas) precision circuit has the following characteristics:
0.01% linearity (max.)
Single SV source operation
Excellent temperature stability: 50 ppm / ° C (max.)
Small power dissipation: 15mW at 5 V (typical)
Wide operating frequency range: 1Hz to 100 kHz
| Clique na imagem para ampliar |
