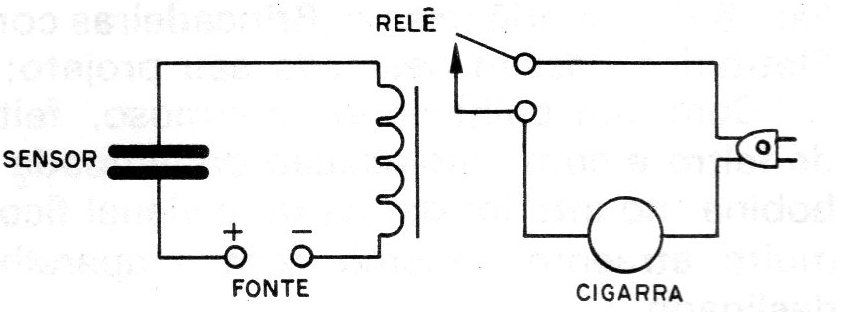

We have in the figure an ultra-simple alarm found in a 1981 publication. As the author indicates, it is not exactly an electronic project, but it may well be useful for many readers as part of other more complex projects. The source must have voltage according to the relay and the sensor is of the NA type, for example, of the reed switch type. In the non-triggered condition, consumption is zero.
