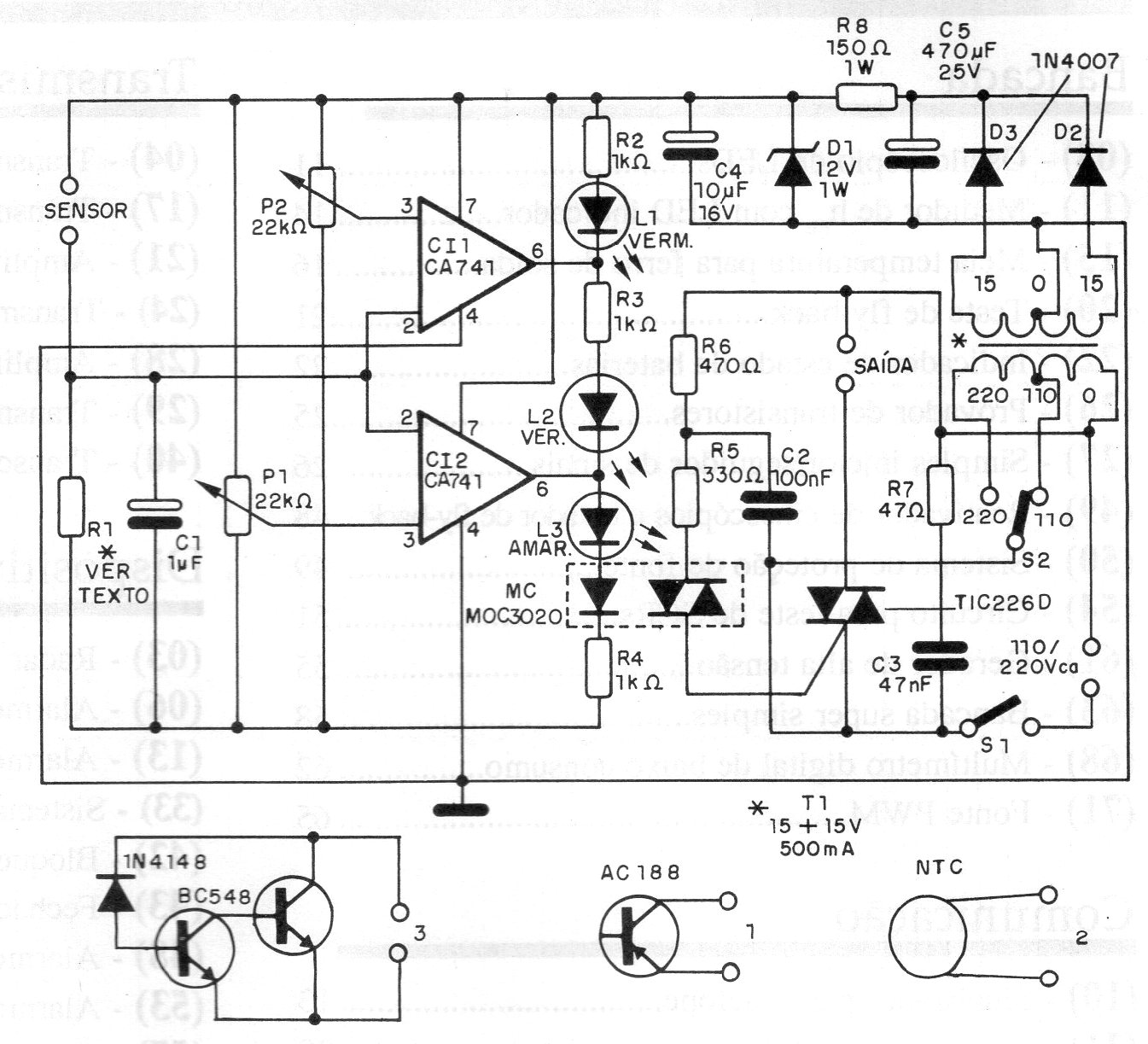

This circuit is from an old documentation from 1995, but it can be easily assembled today by the components it uses. R1 can be a 220k sensor, 220k NTC, or 10k. The circuit directly controls a triac that depends on the power of the heating element.
