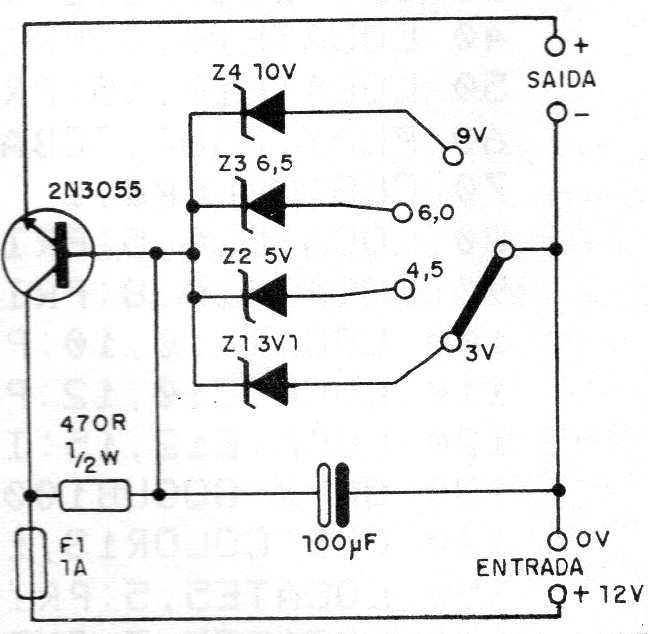

This conventional series reducer circuit reduces the voltage of a 12 V battery to the selected value of the zener diode. The transistor must be mounted on a heat sink and the maximum current is in the order of 1 A. The fuse is important for protection.
