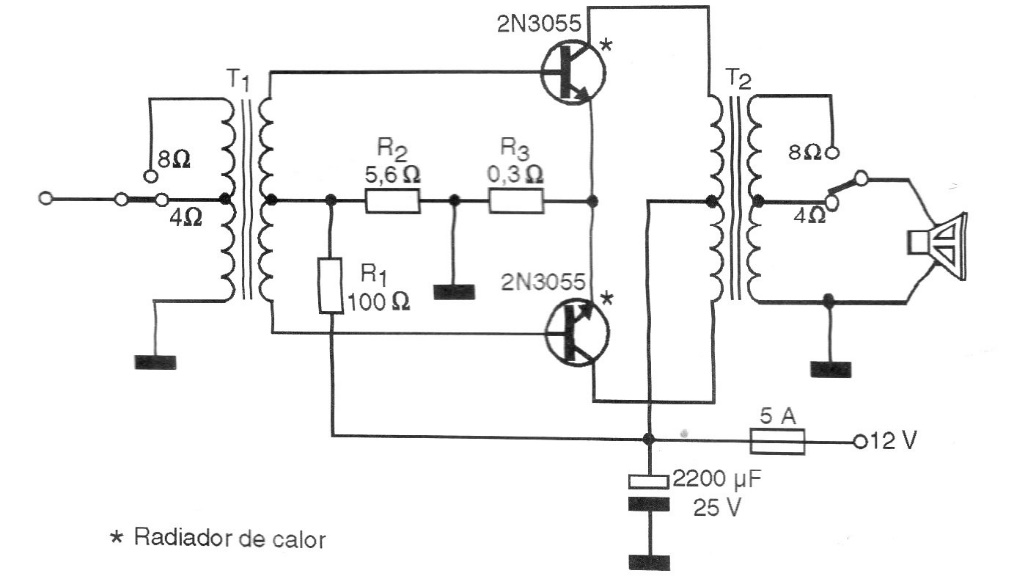

This circuit, from a 1998 documentation, allows to obtain more power for the radios and amplifiers of the time that in general did not exceed 4 W. The transistors must be equipped with heatsinks and the signal is removed from the speaker. Home-made transformers are used or obtained from power amplifiers of the time.
| Clique na imagem para ampliar |
