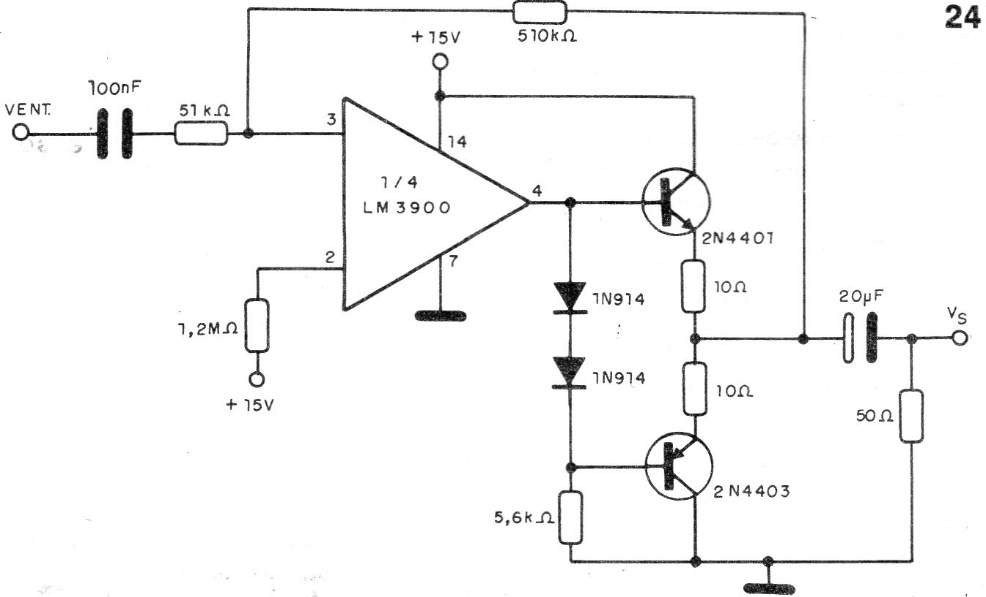

This circuit is based on an LM3900 transconductance operational amplifier, found in 1992 documentation. The circuit does not need a symmetrical source and the transistors admit equivalents. The signal strength is 6 Vpp and the gain 50.




| Clique na imagem para ampliar |
