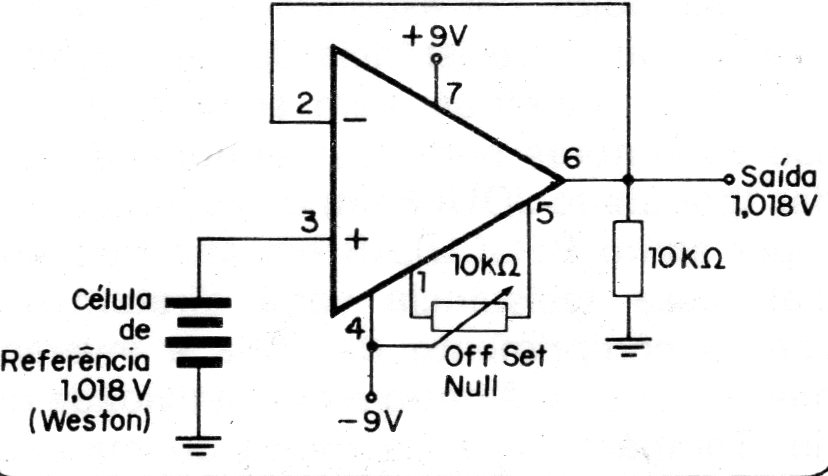

This circuit uses a reference battery used in laboratories to provide an accurate voltage for adjusting instruments. The circuit is from an old documentation and needs a symmetrical source of 6 to 12 V. Other operational amplifier can be used.
