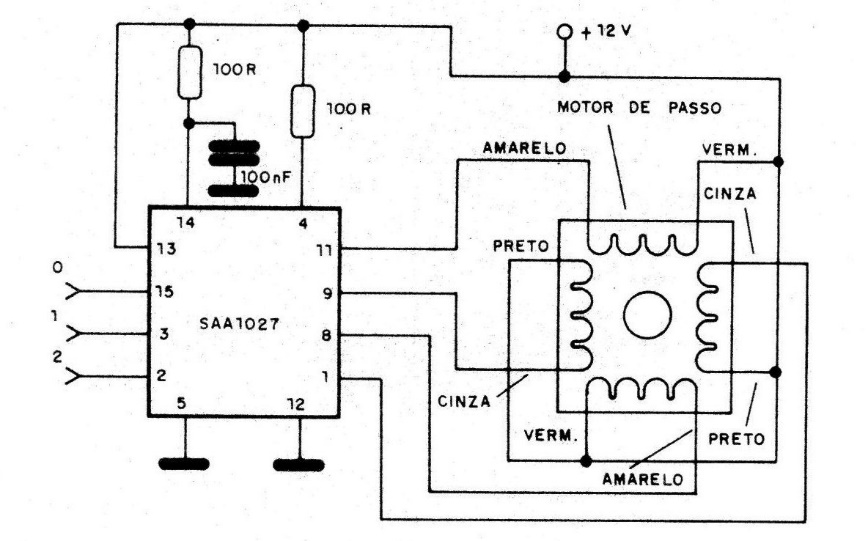

This circuit uses a dedicated Philips integrated, which consists of a stepper motor control from 3 inputs that can be obtained directly from a microprocessor. The engine is 7.5 °, that is, 48 steps per revolution.
| Clique na imagem para ampliar |
Stepper Motor Control SAA1027 (CB16007E)
- Details
- Written by: Newton C. Braga
