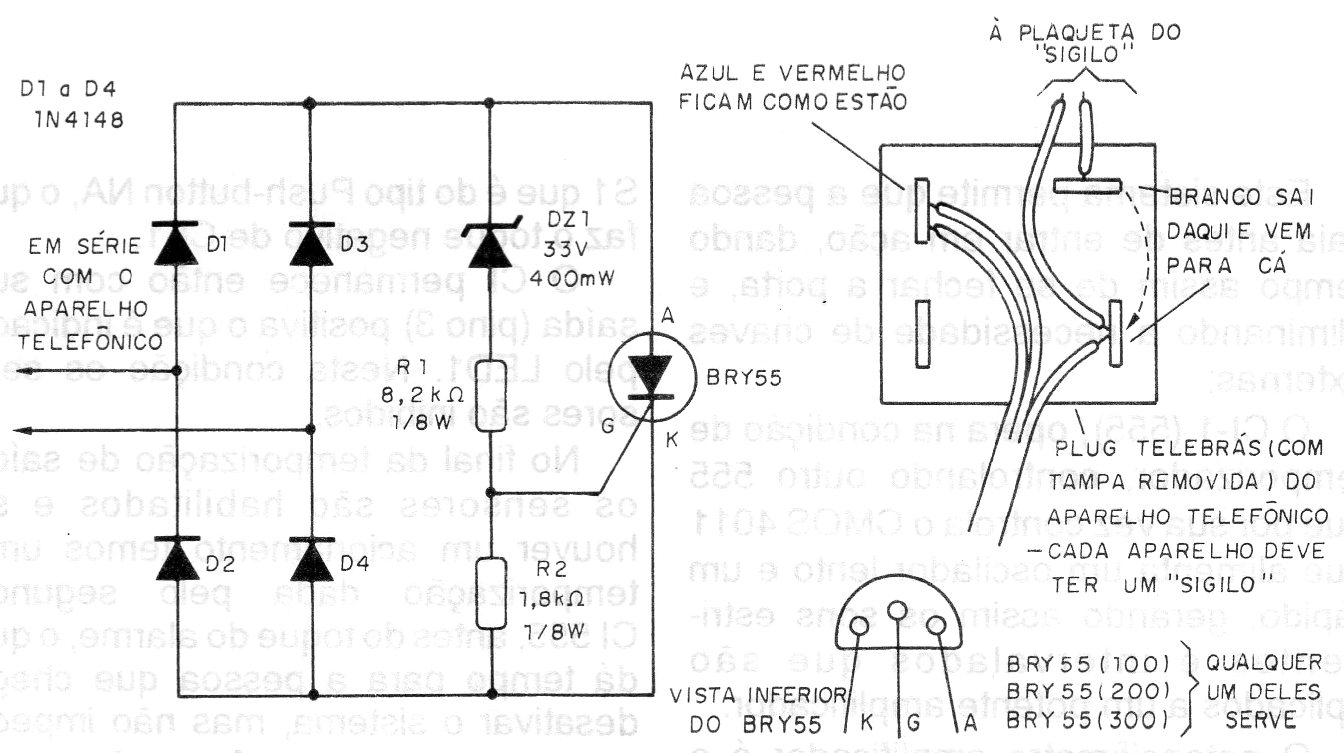

The purpose of this circuit is to keep the other phones on the same line muted when one is used. The circuit uses an SCR and the device used is the first one that is removed from the hook. The circuit is from an old documentation from 1992. Only Applied to old telephones.
| Clique na imagem para ampliar |
