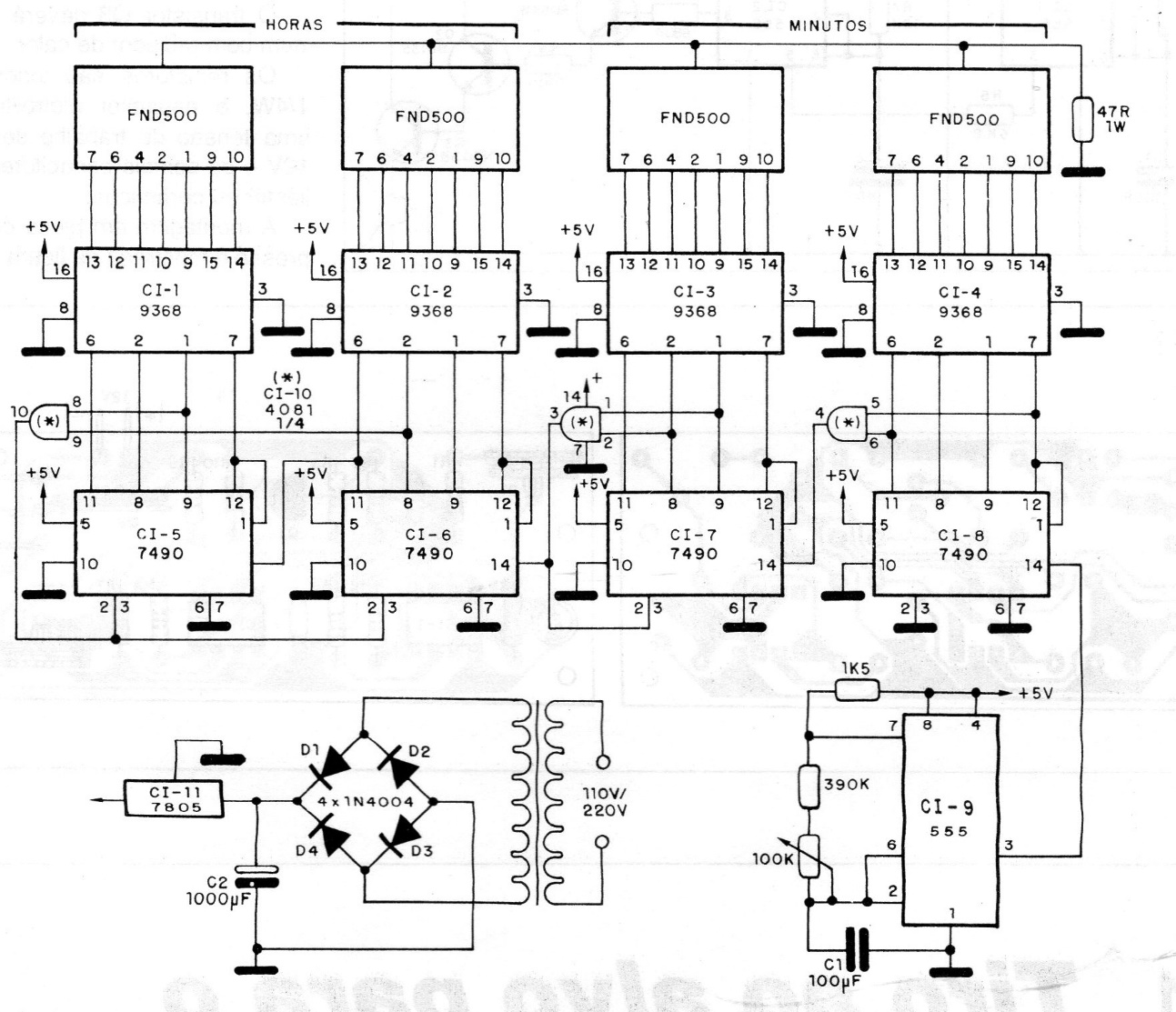

This is a conventional digital clock with TTL technology using common cathode displays. The circuit is from 1987 documentation and has a time base that must be carefully adjusted to produce a pulse per minute, as the accuracy of the circuit depends on it.
