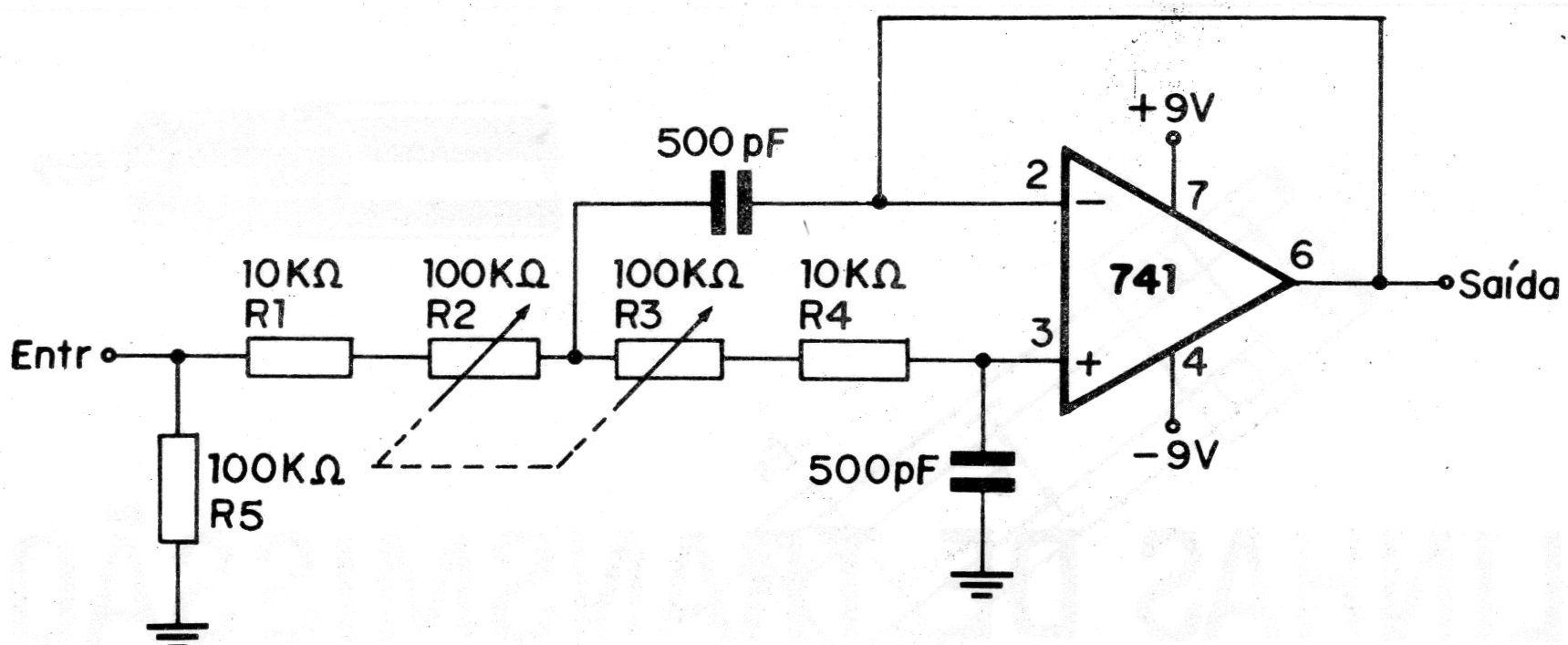

We found this filter configuration in an old documentation. It is one of many possible ones that can be found on the website. The circuit requires a symmetrical 6 to 12 V source and equivalent operational amplifiers can be used.
| Clique na imagem para ampliar |
