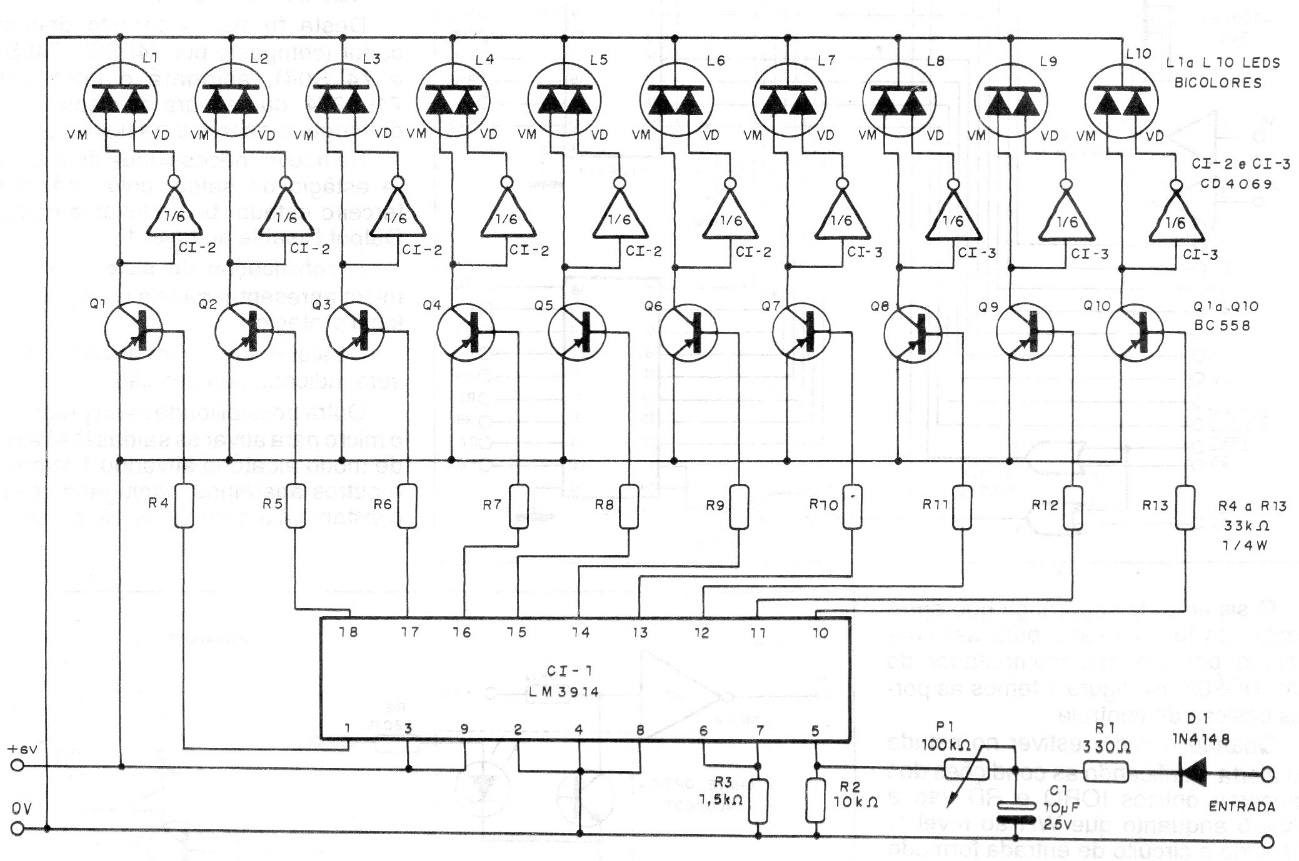

Based on the well-known LM3914, this circuit has a transistorized and inverters stage, triggering two-color LEDs. The circuit can be supplied with a voltage of 6 to 12 V and the adjustment of the operating point is made in P1.
