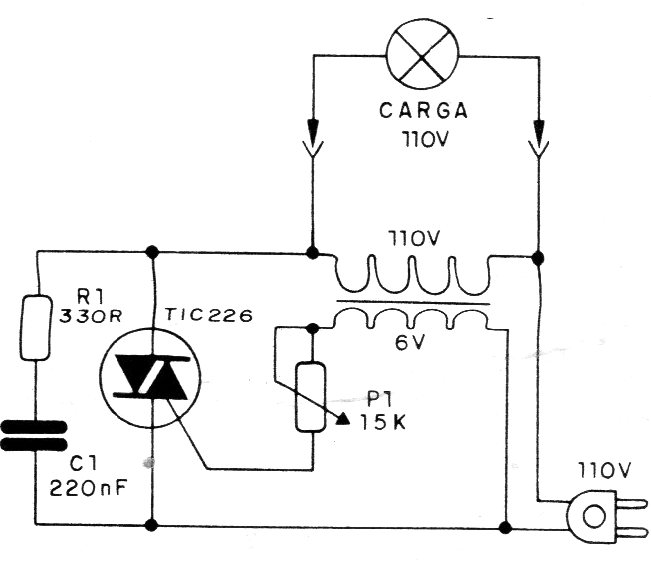

We found this circuit in a 1988 documentation. It is a protective system that automatically shuts off a load if it goes short. The transformer has a primary according to the local network and a secondary 6 V with a current between 300 mA and 1 A. The triac must be able to control the load and be mounted on a heat sink.
