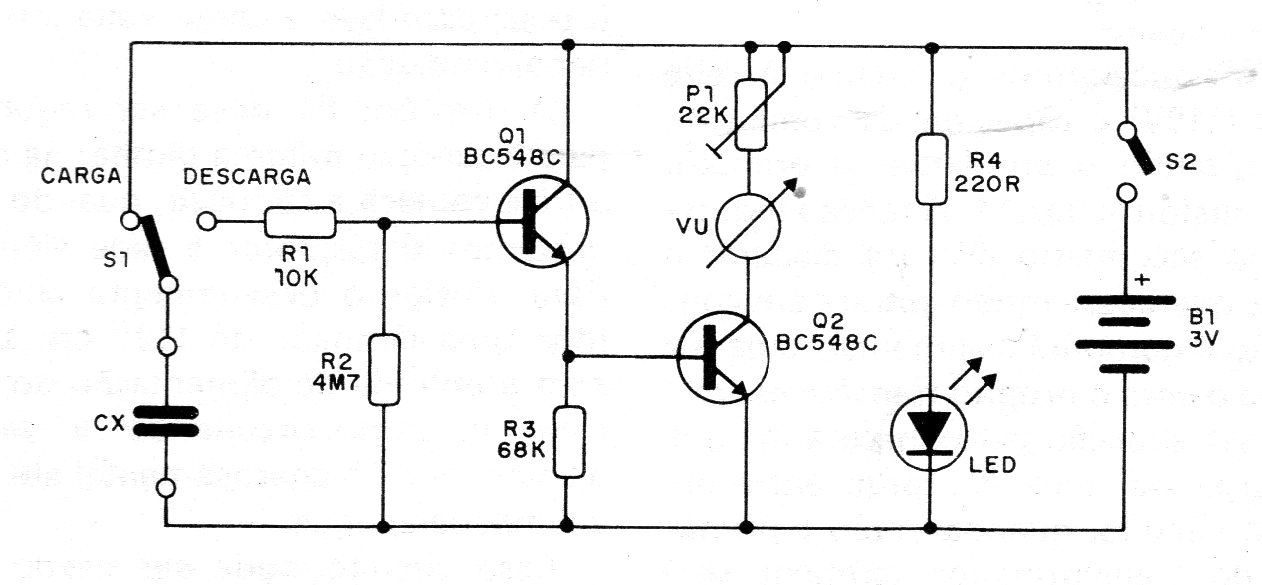

The circuit shown was found in a 1988 documentation, giving an indication of value in an instrument. The idea is to charge a capacitor (up to 220 nF) and discharge it by changing position S1. The maximum point reached by the indicator needle gives an idea of the capacitor's value.
| Clique na imagem para ampliar |
