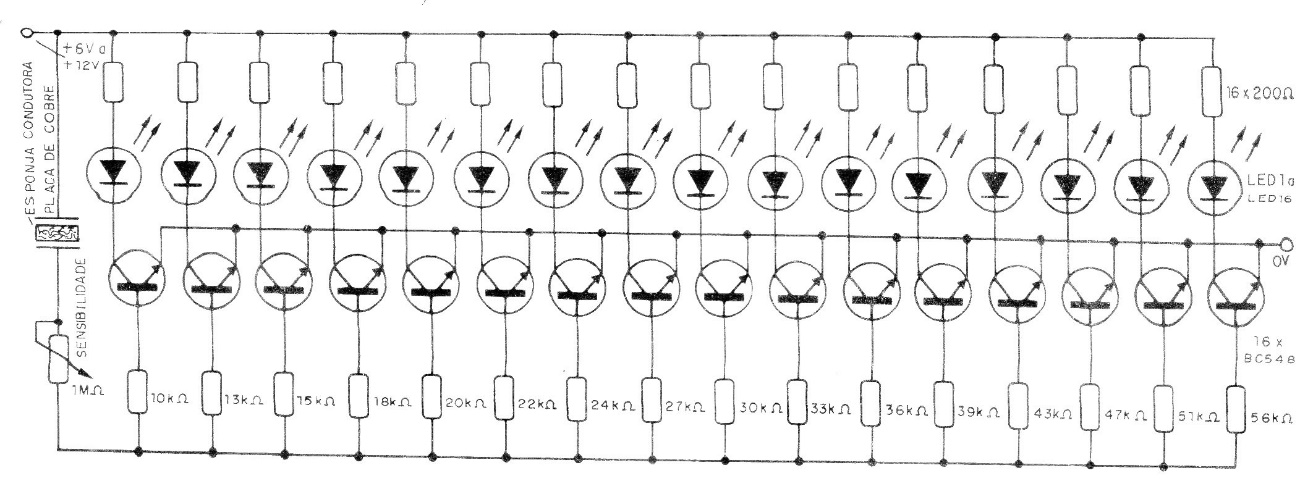

The scale of this scale uses LEDs, and its accuracy depends on the number of LEDs. We found this circuit in a 1992 documentation. The transducer consists of two plates that have a piece of conductive sponge between them. The sponge changes its resistance when pressed by the object that is weighed.
| Clique na imagem para ampliar |
