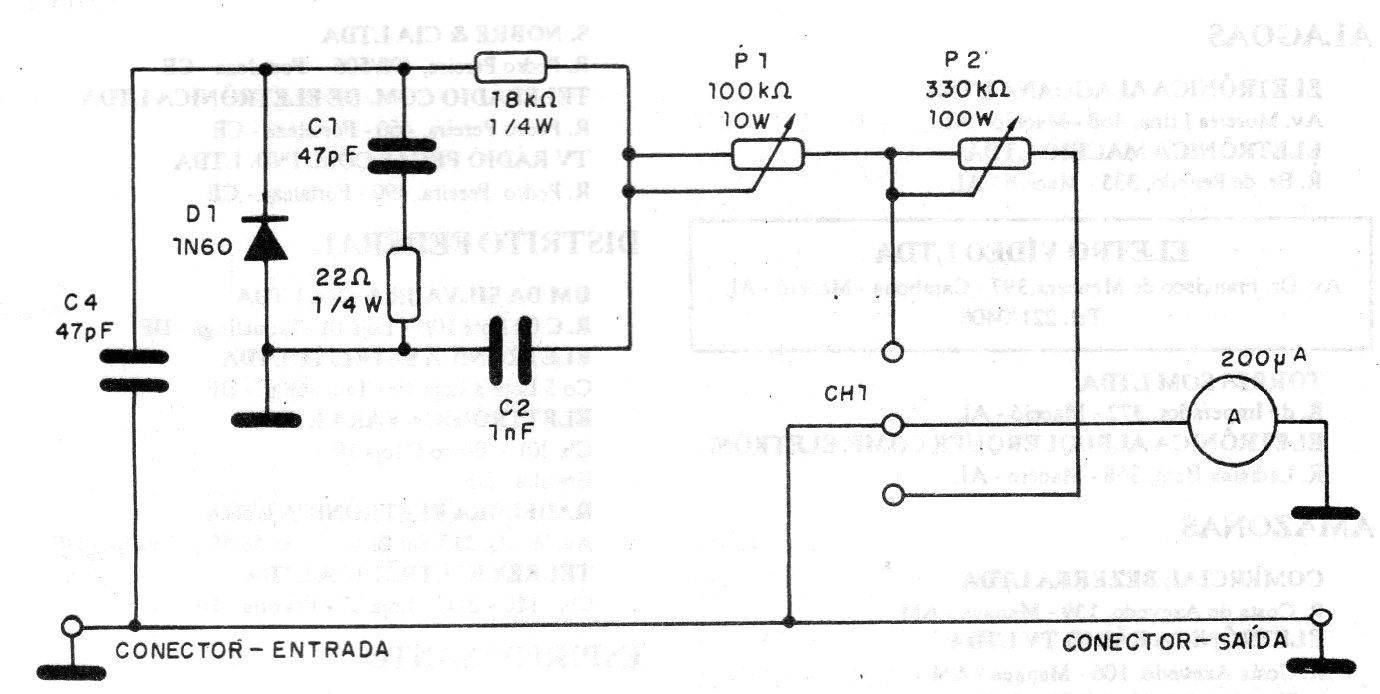

This circuit is used to measure the power of transmitters from 3 to 30 MHz with powers up to 100 W. The circuit uses a common indicator that can be adjusted with the help of a transmitter of known power. The circuit is powered by the transmitter's own RF signal.
| Clique na imagem para ampliar |
