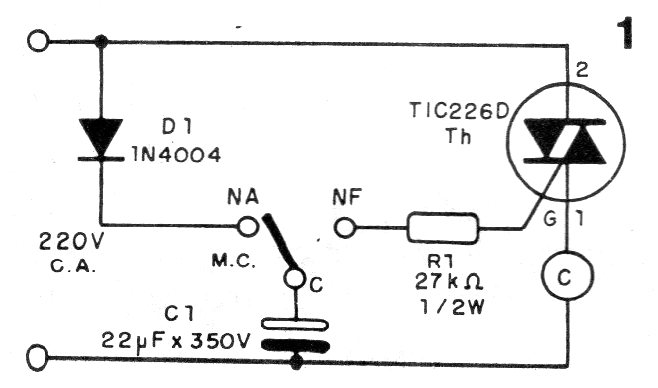

This circuit was found in a 1992 publication. Its purpose is to time the activation of a doorbell preventing it from being activated for long intervals when pressing the button. The activation time is given by the capacitor and can be changed.
| Clique na imagem para ampliar |
